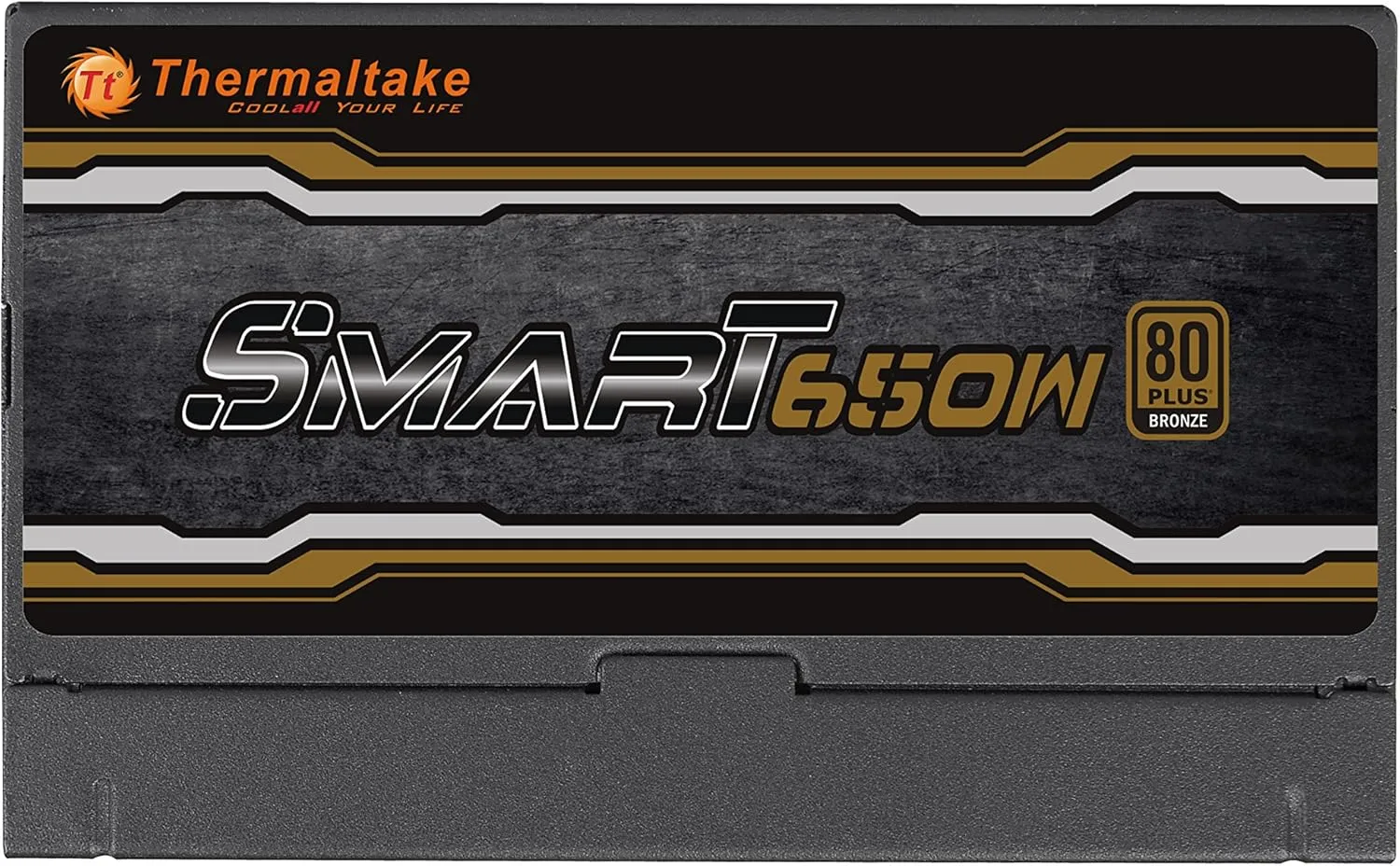

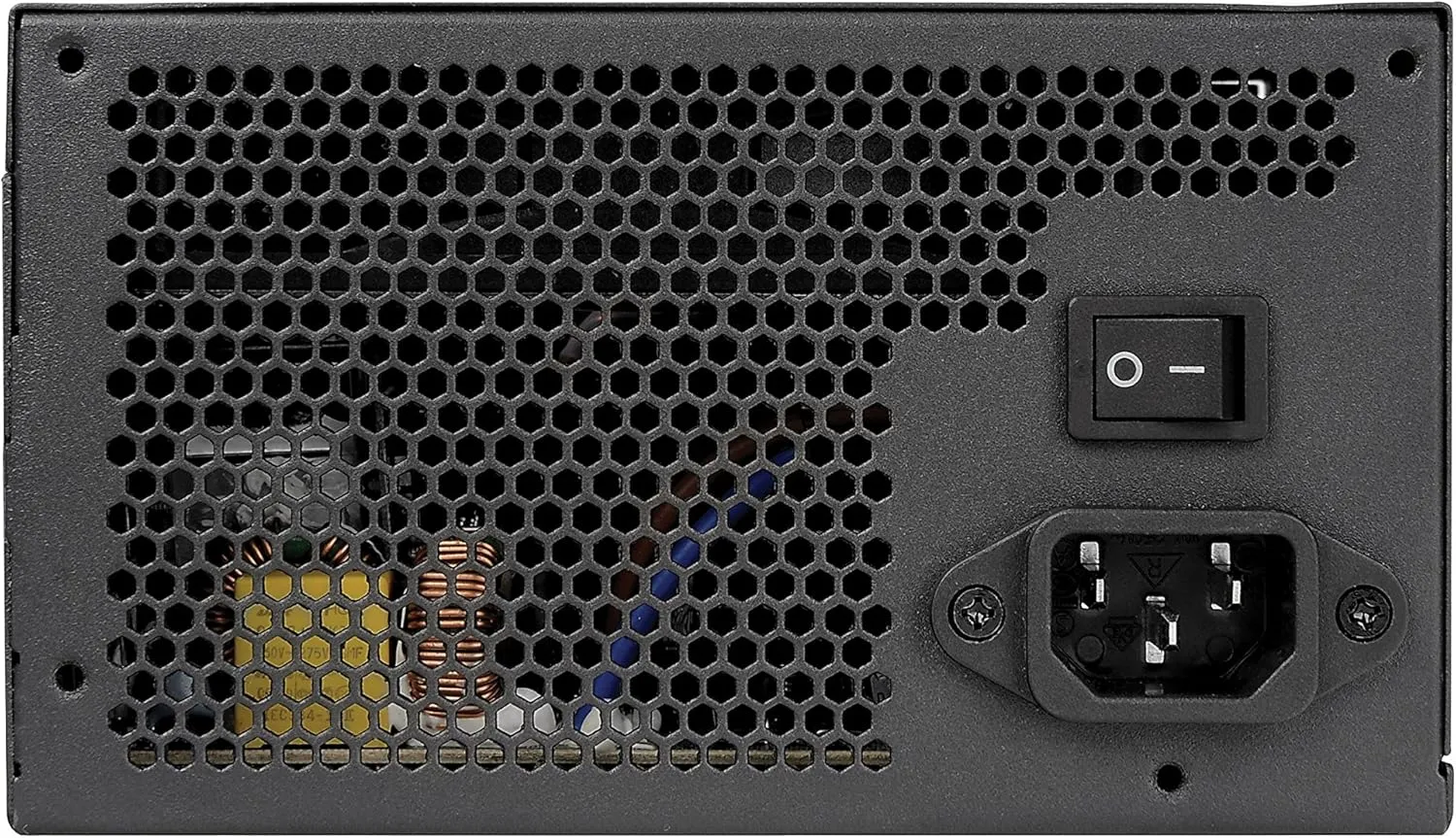

The Thermaltake Smart 650W is engineered for users who demand consistent power delivery without overspending. It supports ATX 12V v2.3 compliance and is compatible with most modern Intel and AMD motherboards. With up to 88% efficiency under typical loads, it helps reduce power waste while maintaining stable system performance.
This power supply is suitable for gaming PCs equipped with dedicated graphics cards, content creation setups, and everyday productivity systems that require reliable wattage output.
Key Features & Specifications
Below is a detailed breakdown of the Thermaltake SP-650P specifications presented in organized columns for easy understanding:
🔌 Connectivity
| Connector Type | Quantity |
|---|---|
| 24-Pin ATX Motherboard | 1 |
| 4+4-Pin EPS CPU | 1 |
| 6+2-Pin PCIe | 2 |
| 15-Pin SATA | 6 |
| 4-Pin Peripheral (Molex) | 4 |
| 4-Pin Floppy | 1 |
The multiple SATA and PCIe connectors make it ideal for gaming builds with SSDs, HDDs, and dedicated GPUs.
⚡ Electrical Specifications
| Specification | Details |
|---|---|
| Total Wattage | 650W |
| Combined +12V Power | 624W |
| Max Load +12V | 52A |
| Combined +3.3V/+5V | 120W |
| Max Load +3.3V | 24A |
| Max Load +5V | 24A |
| Peak Power | 780W |
| AC Input | 100–240VAC, 50/60Hz |
The powerful +12V rail ensures stable performance for graphics cards and processors, making it suitable for gaming systems.
🌡 Cooling & Environmental
| Feature | Specification |
|---|---|
| Fan Size | 120mm |
| Fan Speed | 1800 RPM |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 90% |
| Storage Temperature | -20°C to 70°C |
The 120mm cooling fan ensures efficient airflow and quieter operation under load.
🛡 Protection & Durability
| Protection Features | Included |
|---|---|
| Over-Current Protection (OCP) | Yes |
| Over-Voltage Protection (OVP) | Yes |
| Under-Voltage Protection (UVP) | Yes |
| Over-Power Protection (OPP) | Yes |
| Short-Circuit Protection (SCP) | Yes |
| MTBF | 100,000 Hours |
With comprehensive protection mechanisms, this PSU safeguards your system components from unexpected power fluctuations.
Efficiency & Performance
The Thermaltake Smart 650W delivers 82% to 88% efficiency at 20% to 100% load. While it does not carry an official 80 PLUS certification badge, it performs within Bronze-level efficiency standards. The 16ms hold-up time at 80% load ensures reliable power continuity during minor voltage drops.
Its Power-Good signal timing (100 to 500 ms) guarantees stable motherboard communication during startup.
Physical Dimensions & Build
Dimensions: 150 x 86 x 140 mm
Weight: 4.9 lb
ATX 12V v2.3 compliant
The compact size makes it easy to install in most mid-tower and full-tower PC cases available in Pakistan.
Why Buy Thermaltake Smart 650W in Pakistan?
Affordable price for 650W output
Strong +12V rail for gaming GPUs
Reliable brand reputation
Complete protection suite
Wide voltage input support (100–240V)
For Pakistani users dealing with voltage fluctuations, the wide AC input range is particularly beneficial.
Best Price in Pakistan
The price of the Thermaltake Smart 650W 80+ Bronze Power Supply in Pakistan typically ranges between PKR 9,000 to PKR 18,000, depending on the retailer and city. Prices may vary due to import rates and stock availability.
For the best price, it is recommended to check trusted online computer stores and local hardware markets in Karachi, Lahore, and Islamabad.
Final Verdict
The Thermaltake Smart 650W SP-650PCBUS is a dependable and cost-effective PSU designed for gamers and PC builders in Pakistan. With solid electrical output, multiple connectors, strong safety protections, and efficient cooling, it delivers excellent value in the mid-range power supply category.
If you are building or upgrading your PC and need stable 650W performance without overspending, this model is a smart and practical choice.
